Bartels AutoEngineer®

Bartels AutoEngineer®
Version 6.0
Highlights

PDF Version (158 KB; updated 24 October 2008)

Contents

Schematic Editor with Project Net Name Selection Dialogs
Schematic Editor with Automatic Bus Tap Row Placement
Multiline Text Processing in Schematics and Layout
Layout Editor with Dynamic Airline Display during Manual Routing
Autorouter Pin Connection Patterns
CAM Processor and CAM View Dialogs for Gerber Aperture Table Definitions

Schematic Editor with Project Net Name Selection Dialogs

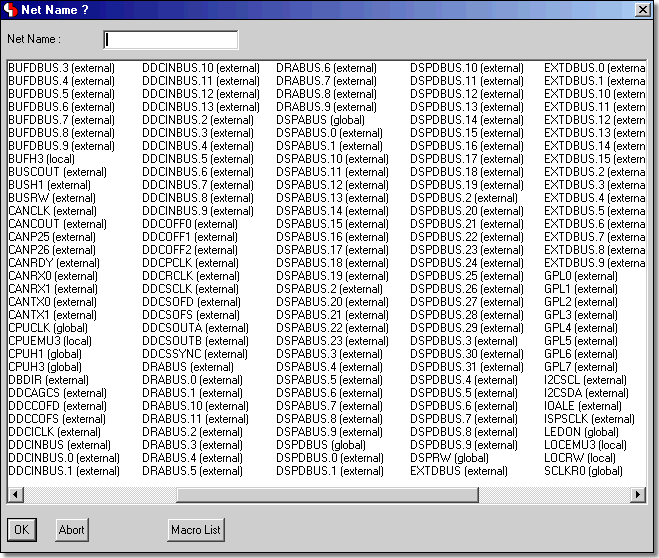

BAE Version 6.0: Schematic Editor Dialog - Add Label - Project Net Name Selection Dialogs

Schematic Editor with Automatic Bus Tap Row Placement

Bus Tap Row Definition

BAE Version 6.0: Schematic Editor - Tap Bus - Bus Tap Row Definition
Bus Tap Row Placement

BAE Version 6.0: Schematic Editor - Tap Bus - Bus Tap Row Placement

Multiline Text Processing in Schematics and Layout

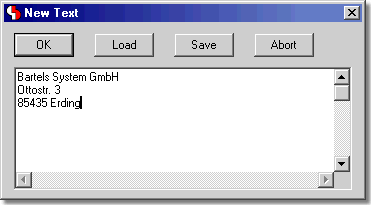

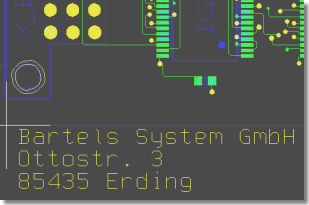

BAE Version 6.0: Dialog - Add/Edit Multiline Text BAE Version 6.0: Layout Multiline Text

Layout Editor with Dynamic Airline Display during Manual Routing

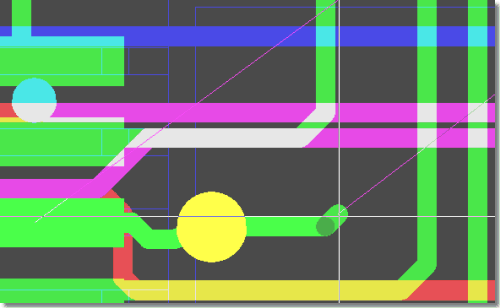

BAE Version 6.0: Layout Editor with Dynamic Airline Display during Manual Routing

Autorouter Pin Connection Patterns

BGA Via Fanout Routing

BAE Version 6.0: Autorouter Pin Connection Patterns - BGA Via Fanout Routing
Microvias - Via-in-Pin Routing

BAE Version 6.0: Autorouter Pin Connection Patterns - Microvias / Via-in-Pin Routing

CAM Processor and CAM View Dialogs for Gerber Aperture Table Definitions

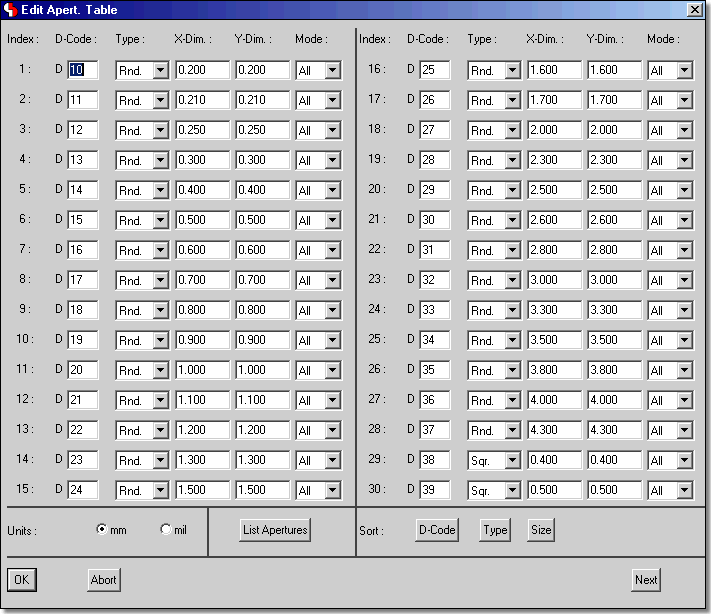

BAE Version 6.0: CAM Processor and CAM View Dialogs - Gerber Aperture Table Definition
