Version 5.4
Highlights

PDF Version (241 KB; updated 24 October 2008)

Contents

Layout Display Pattern Settings
Library Element Selection Dialogs
Dialog for selecting Layout Parts and Part Sets for Placement
Dialogs for increased usability
SCM Text Classes for Visibility Control
Copper Fill Cutouts on Alternative Layers
BAE HighEnd: Minimum Distance Check between Net Groups

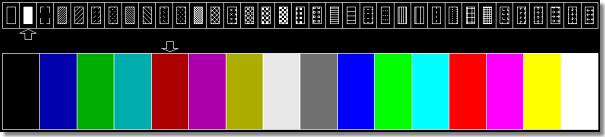

Layout Display Pattern Settings

BAE Version 5.4: Layout Display Pattern Settings
Increased Multilayer Visibility

BAE Version 5.4: Layout Display Pattern Settings - Increased Multilayer Visibility
Overlapping Fill Area Outlines visible

BAE Version 5.4: Layout Display Pattern Settings - Overlapping Fill Area Outlines visible

Library Element Selection Dialogs

BAE Version 5.4: Schematic Editor - Library Element Selection Dialogs

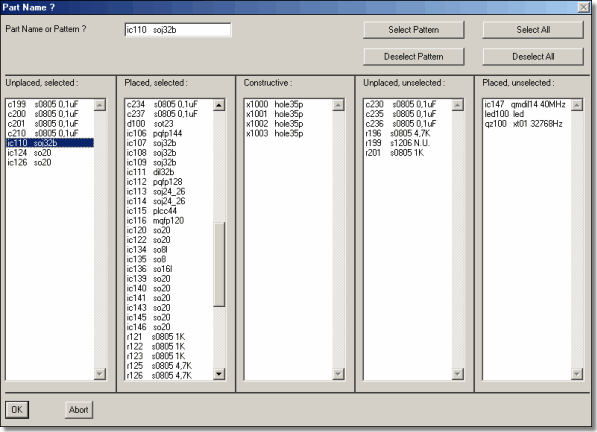

Dialog for selecting Layout Parts and Part Sets for Placement

BAE Version 5.4: Layout - Dialog for selecting Parts and Part Sets for Placement

Dialogs for increased usability

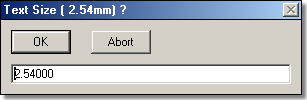

BAE Version 5.4: Dialog - Jump absolute BAE Version 5.4: Dialog - Texthöhe

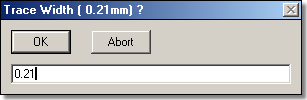

BAE Version 5.4: Layout Dialog - Trace Width

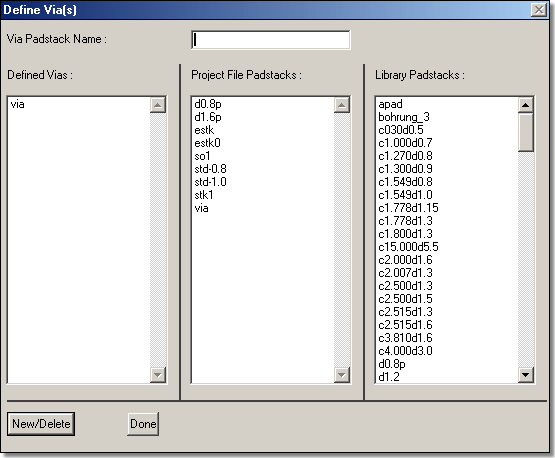

BAE Version 5.4: Layout Editor Dialog - Select Via(s)

SCM Text Classes for Visibility Control

only Values visible

BAE Version 5.4: Schematics - Text Classes for Visibility Control (e.g., only Values visible)
Values and Pin Names visible

BAE Version 5.4: Schematics - Text Classes for Visibility Control (e.g., Values and Pin Names visible)
only Pin Names visible

BAE Version 5.4: Schematics - Text Classes for Visibility Control (e.g., only Pin Names visible)

Copper Fill Cutouts on Alternative Layers

e.g., for Milling Contour Generation

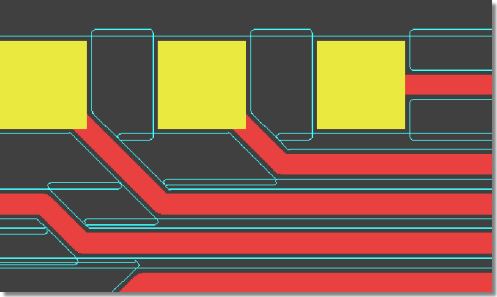

BAE Version 5.4: Layout - Copper Fill Cutouts on Alternative Layers (e.g., for Milling Contour Generation)

BAE HighEnd: Minimum Distance Check between Net Groups

BAE Version 5.4: HighEnd - Minimum Distance Check between Net Groups
