Version 6.8
Highlights

PDF Version (311 KB; updated 24 October 2008)

Contents

Schematic Editor Symbol Selection with Symbol Preview
Layout Editor Part Selection with Part Preview
Toolbar Grid Favorites Configuration
Toolbar File Element Favorites Configuration
SCM Plot Preview with Pen Width
Layout Plot Preview with Pen Width
Graphic Cursor Info Tooltips
Polygon Point List Editor
Element-specific DRC Clearance Display Option
Gridless Trace DRC Snap
3-D Graphic Export to WRL/VRML1.0

Schematic Editor Symbol Selection with Symbol Preview

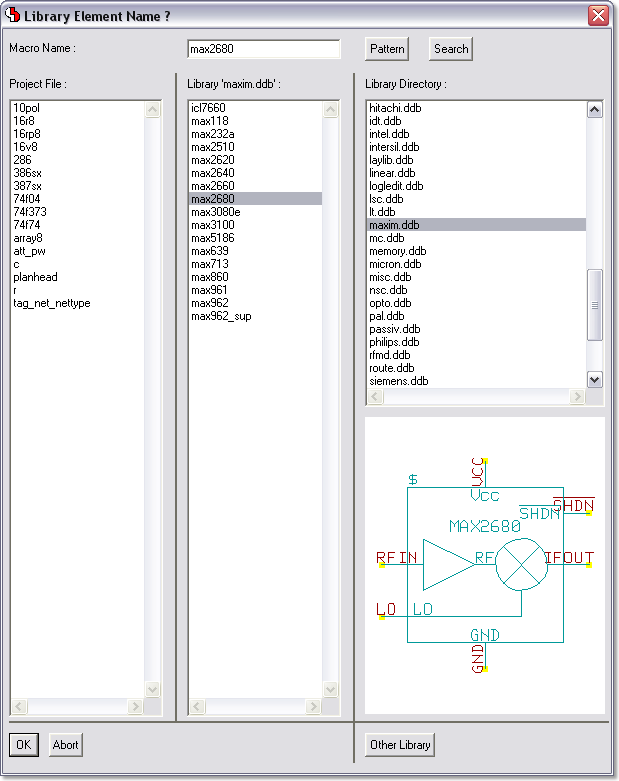

BAE Version 6.8: Schematic Editor: Symbol Preview

Layout Editor Part Selection with Part Preview

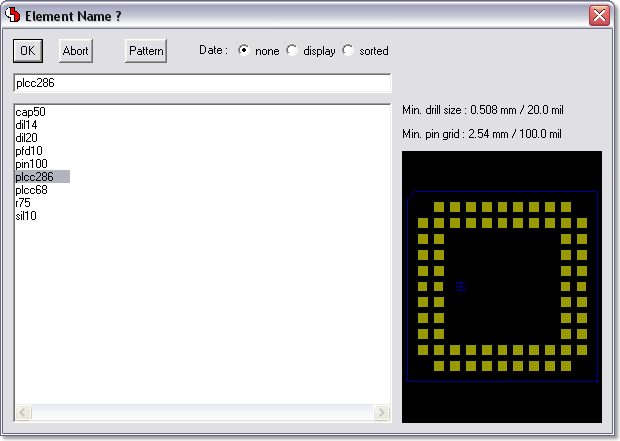

BAE Version 6.8: Layout Editor: Part Preview

Toolbar Grid Favorites Configuration

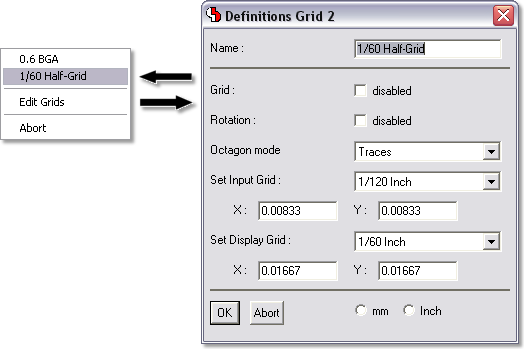

BAE Version 6.8: Layout Editor: Toolbar Grid Favorites Configuration

Toolbar File Element Favorites Configuration

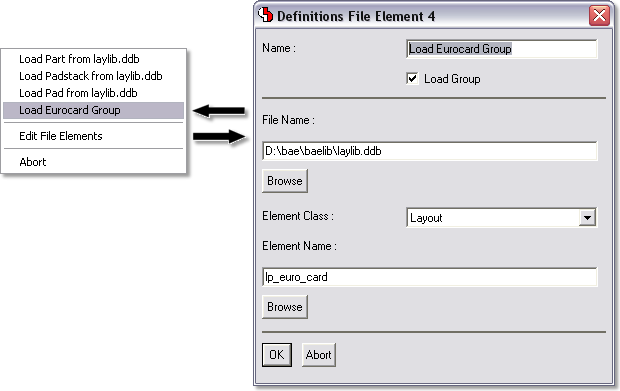

BAE Version 6.8: Layout Editor: Toolbar File Element Favorites Configuration

SCM Plot Preview with Pen Width

BAE Version 6.8: Schematic Editor: Plot preview with selected plot pen width

Layout Plot Preview with Pen Width

BAE Version 6.8: Layout / CAM Processor: Plot preview with selected plot pen width

Graphic Cursor Info Tooltips

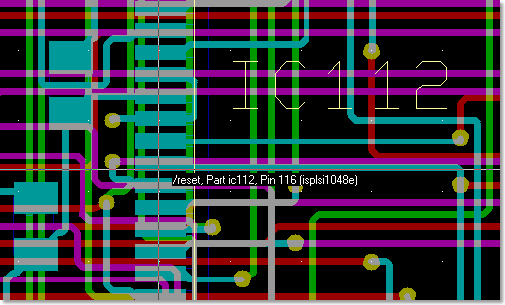

BAE Version 6.8: Layout Editor: Graphic cursors info tooltips

Polygon Point List Editor

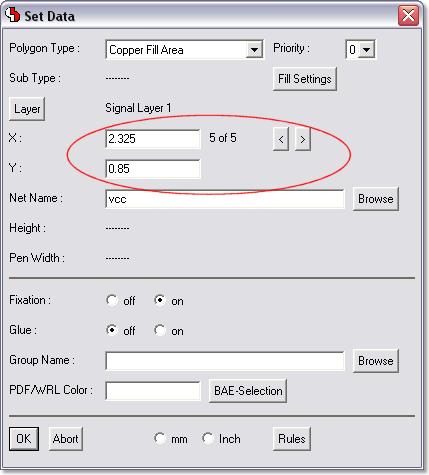

BAE Version 6.8: Layout Editor - Graphic, Areas: Polygon point list editor accessible through p key

Element-specific DRC Clearance Display Option

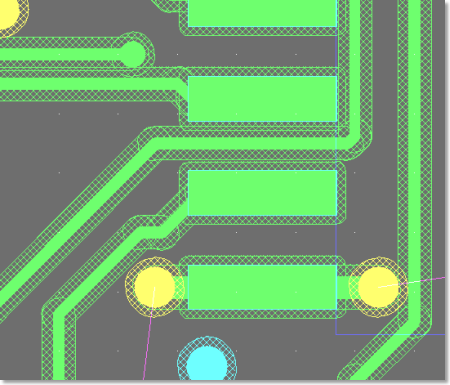

BAE Version 6.8: Layout Editor - Design Rule Checking: Element-specific DRC Clearance Display Option

Gridless Trace DRC Snap

Gridless routing alongside obstacle edges

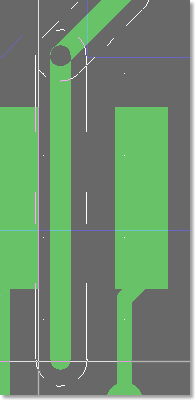

BAE Version 6.8: Layout Editor - Gridless Trace DRC Snap: Gridless routing alongside obstacle edges
Trace centered between obstacles

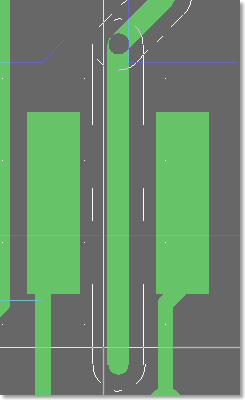

BAE Version 6.8: Layout Editor - Gridless Trace DRC Snap: Trace centered between obstacles

3-D Graphic Export to WRL/VRML1.0

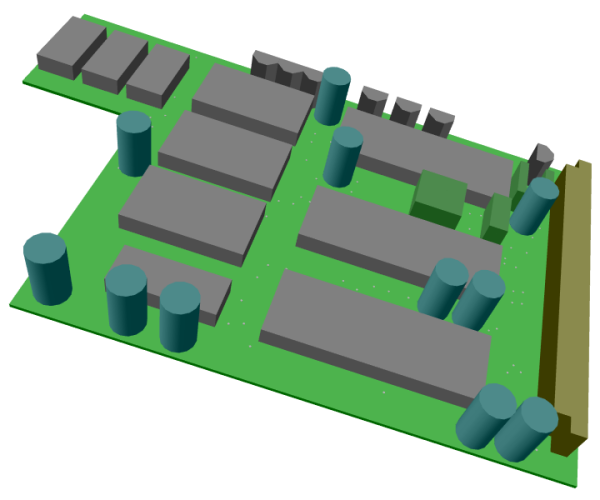

BAE Version 6.8: Layout: 3-D Graphic Export to WRL/VRML1.0
