This document highlights some of the new features introduced with the Bartels AutoEngineer Version 7.4.

Contents

^Contents<>
Treeview Menu Display Options
Toolbar Grid Display and Grid Selection
Improved Polygon Editor Interface
Coordinate Measuring
Symbol Browser with Logical Library Definition Display
Differential Pairs
DRC Error Distance Display
Postscript Output with Fixed Size Drilling Punch Hole
WRL Copper Output with transparent PCB Board

Treeview Menu Display Options

^Contents<>

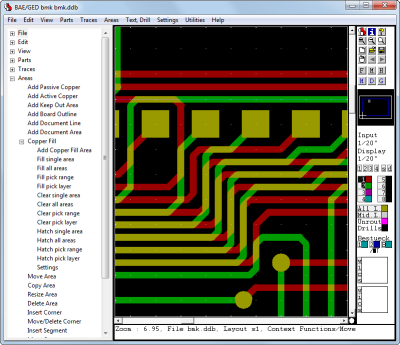

Left Treeview Menu Display

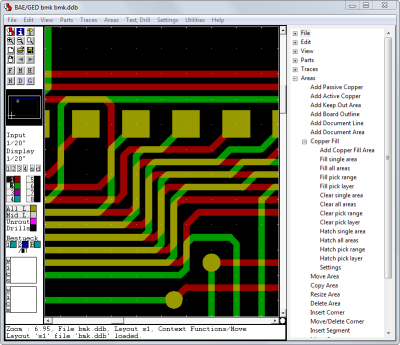

BAE Version 7.4: Layout Editor: Left Treeview Menu Display		 Right Treeview Menu Display

BAE Version 7.4: Layout Editor: Right Treeview Menu Display

Toolbar Grid Display and Grid Selection

^Contents<>

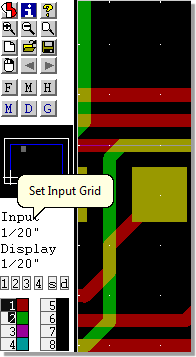

BAE Version 7.4: Layout Editor: Toolbar Grid Display and Grid Selection

Improved Polygon Editor Interface

^Contents<>

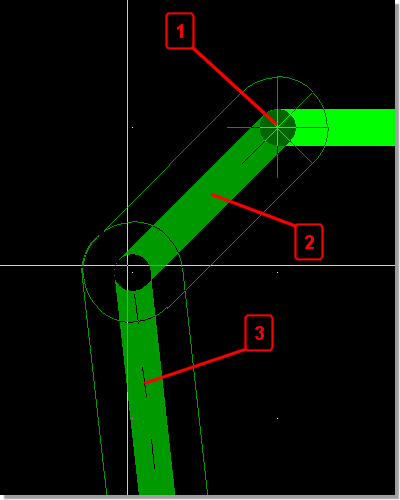

BAE Version 7.4: Layout Editor: Polygon Editing
  1. Angle Direction Marker
  2. Solid display for segment placed by setting corner point
  3. Dashed display for segment processed after corner point

Coordinate Measuring

^Contents<>
Separate X/Y Coordinates

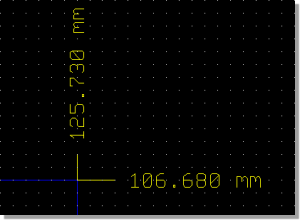

BAE Version 7.4: Layout Editor: Separate X/Y Coordinate Measuring		 X/Y Coordinate Pair

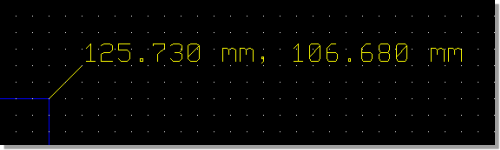

BAE Version 7.4: Layout Editor: X/Y Coordinate Pair Measuring

Symbol Browser with Logical Library Definition Display

^Contents<>

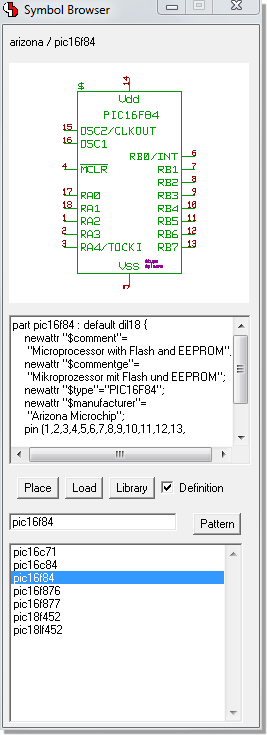

BAE Version 7.4: Schematic Editor: Symbol Browser with Logical Library Definition Display

Differential Pairs

^Contents<>
Schematic Plan Differential Pair Marker

BAE Version 7.4: Schematic Editor: Differential Pair Marker		 Layout Pair Partner Hatch Highlight and Parallel Trace Display

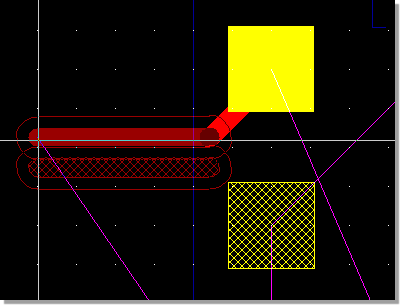

BAE Version 7.4: Layout Editor: Pair Partner Hatch Highlight and Parallel Trace Display

DRC Error Distance Display

^Contents<>
DRC Error Marker
with Distance Display

BAE Version 7.4: Layout Editor: DRC Error Marker with Error Distance Display		 DRC Error Report
with Distance Display

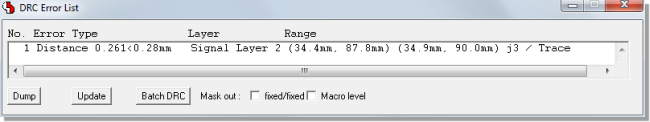

BAE Version 7.4: Layouteditor: DRC Error Report with Error Distance Display

Postscript Output with Fixed Size Drilling Punch Hole

^Contents<>

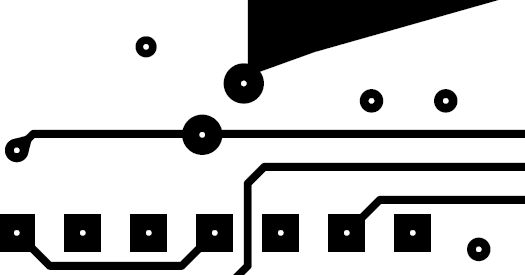

BAE Version 7.4: CAM Processor: Postscript Output with Fixed Size Drilling Punch Hole

WRL Copper Output with transparent PCB Board

^Contents<>
BAE Version 7.4: Layout / CAM: WRL Copper Output with transparent PCB Board
