This document highlights some of the new features introduced with the Bartels AutoEngineer Version 7.6.

Contents

Additional Polygon Types supported by Draw Assistant
Arc Direction Polygon Edit Marker
Polygon Corner/Segment Drag & Drop Edit Mode
Windows Tooltips with Toolbar Data Display
Group and Error Highlight with Display Patterns
Symbol Move with Unroutes Display Option
Add Text Dialog with Text Properties Input Controls
Multiline Text Editor in p-Key Dialog
Symbol/Part Pin List in p-Key Dialog
PDF Output with Symbol/Part Notes
Layout Colour Palette extendend to 512 Colours
Layout Group Autoplacement according to Schematics (BAE HighEnd)
Autorouter Functions integrated to the Layout Editor
Automatic Drill Plan Generation with Drill Legend

Additional Polygon Types supported by Draw Assistant

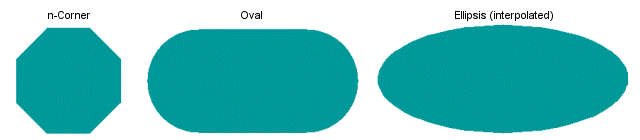

BAE Version 7.6: Schematic Editor - Additional Polygon Types supported by Draw Assistant (n-Corner, Oval, interpolated Ellipsis)

Arc Direction Polygon Edit Marker

BAE Version 7.6: Schematic Editor - Arc Direction Polygon Edit Marker

Polygon Corner/Segment Drag & Drop Edit Mode

BAE Version 7.6: Schematic Editor - Polygon Corner/Segment Drag & Drop Edit Mode

Windows Tooltips with Toolbar Data Display

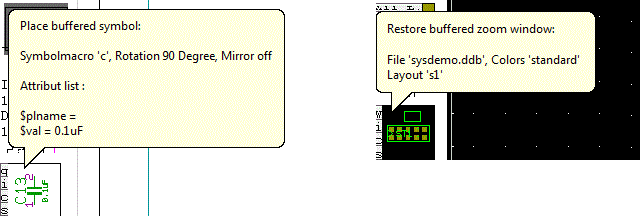

BAE Version 7.6: Schematic Editor and Layout Editor - Windows Tooltips with Toolbar Data Display

Group and Error Highlight with Display Patterns

BAE Version 7.6: Schematic Editor and Layout Editor - Group and Error Highlight with Display Patterns

Symbol Move with Unroutes Display Option

BAE Version 7.6: Schematic Editor - Symbol Move with Unroutes Display Option

Add Text Dialog with Text Properties Input Controls

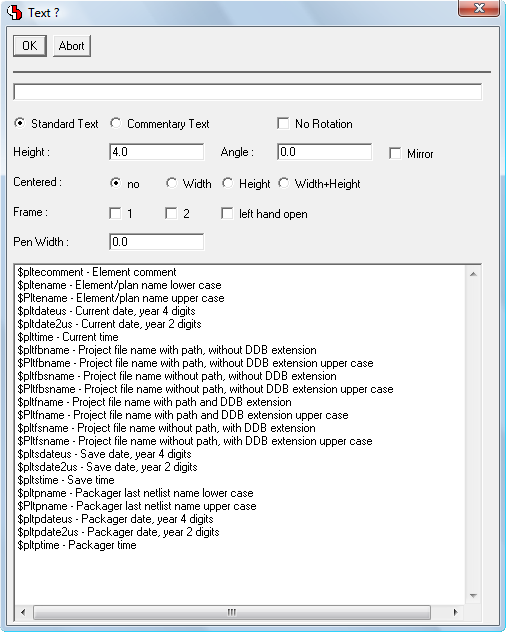

BAE Version 7.6: Schematic Editor - "Add Text" Dialog with Text Properties Input Controls

Multiline Text Editor in p-Key Dialog

BAE Version 7.6: Schematic Editor - Multiline Text Editor in p-Key Dialog

Symbol/Part Pin List in p-Key Dialog

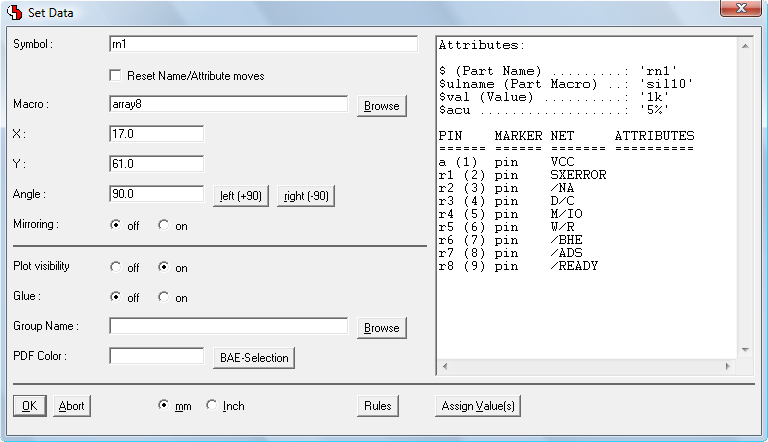

BAE Version 7.6: Schematic Editor - Symbol Pin List in p-Key Dialog

PDF Output with Symbol/Part Notes

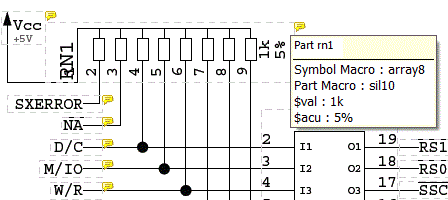

BAE Version 7.6: Schematic Editor - PDF Output with Symbol/Part Notes

Layout Colour Palette extendend to 512 Colours

BAE Version 7.6: Layout Editor - Color Palette

Layout Group Autoplacement according to Schematics (BAE HighEnd)

BAE Version 7.6: Layout Editor - Layout Group Autoplacement according to Schematics (BAE HighEnd)

Autorouter Functions integrated to the Layout Editor

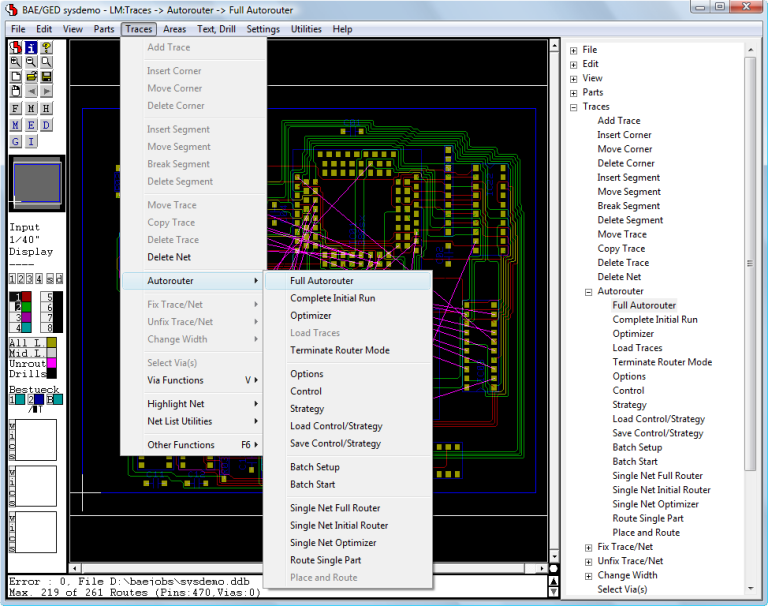

BAE Version 7.6: Layout Editor - Autorouter Functions

Automatic Drill Plan Generation with Drill Legend

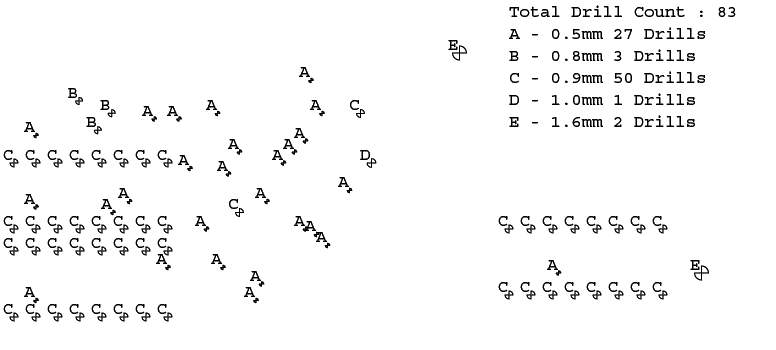

BAE Version 7.6: Layout Editor: Automatic Drill Plan Generation with Drill Legend
