This document highlights some of the new features introduced with the Bartels AutoEngineer Version 7.2.

Contents

Undo/Redo List with Action/Function Display
Packager Error List with Zoom to Schematic Symbols
Modeless Dialogs
Display Grid Lines
Automatic Symmetric Polygon Generation
Layout Solder Side View
Layout Net Highlight with Pattern Display
WRL Export with External 3D Part Models

Undo/Redo List with Action/Function Display

BAE Version 7.2: Layout Editor: Undo/Redo List with Action/Function Display

Packager Error List with Zoom to Schematic Symbols

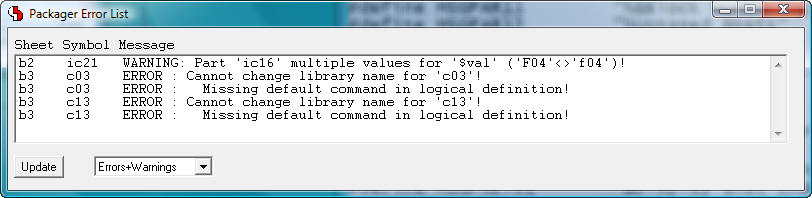

BAE Version 7.2: Schematic Editor: Packager Error List with Zoom to Schematic Symbols

Modeless Dialogs

Symbol Browser

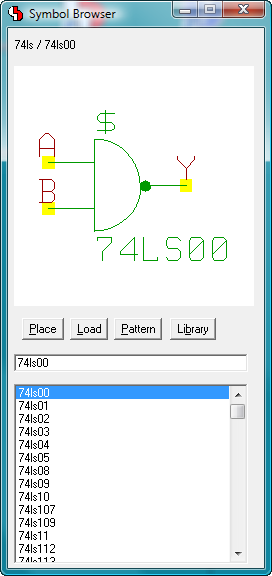

BAE Version 7.2: Schematic Editor: Symbol Browser - Modeless Dialog
Draw Assistant

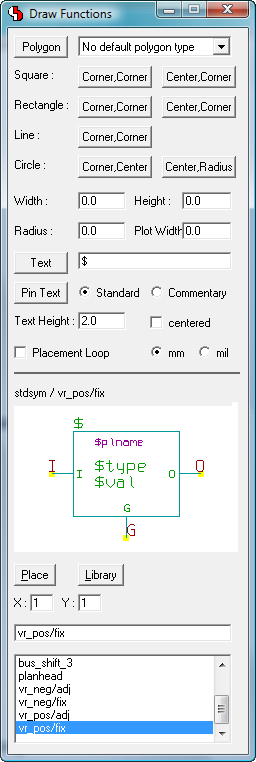

BAE Version 7.2: Schematic Editor: Draw Functions - Modeless Dialog
Favorites Dialog

BAE Version 7.2: Layout Editor: Modeless Favorites Dialog

Display Grid Lines

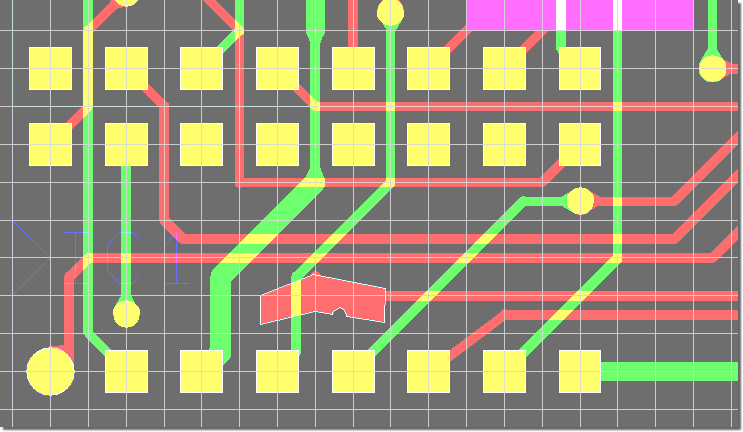

BAE Version 7.2: Layout Editor: Display Grid Lines

Automatic Symmetric Polygon Generation

Create/Edit Polygon...

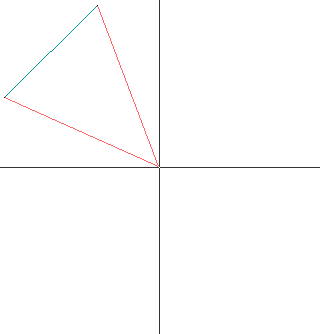

BAE Version 7.2: Layout Editor: Create/Edit Polygon...
...Rotate Symmetrically

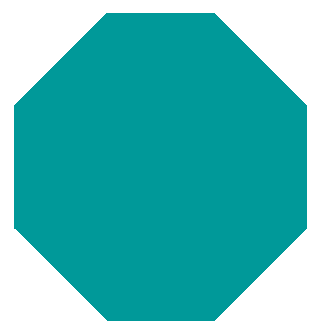

BAE Version 7.2: Layout Editor: Rotate Polygon Symmetrically

Layout Solder Side View

View Layout Component Side

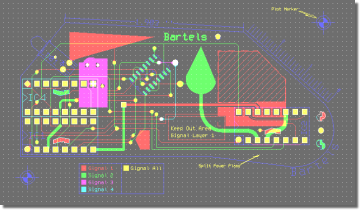

BAE Version 7.2: Layout Editor: View PCB Layout Component Side
View Layout Solder Side

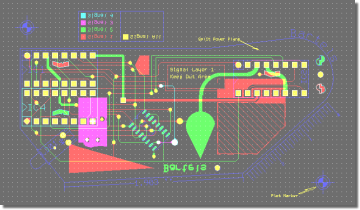

BAE Version 7.2: Layout Editor: View PCB Layout Solder Side

Layout Net Highlight with Pattern Display

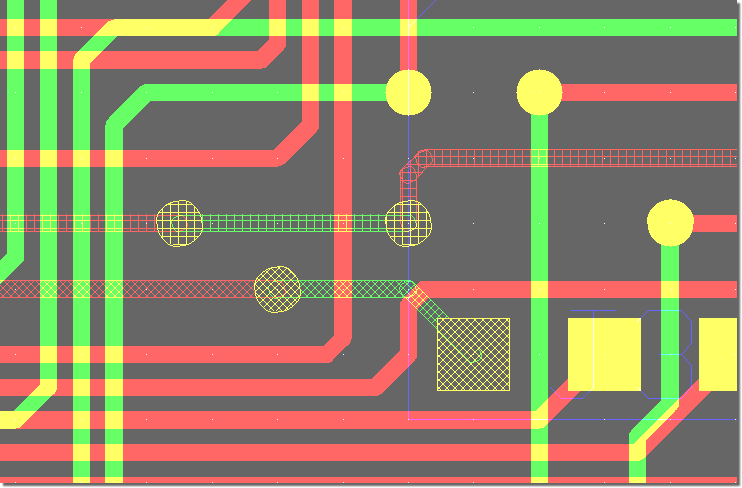

BAE Version 7.2: Layout Editor: Pattern Display for selectable Layout Nets

WRL Export with External 3D Part Models

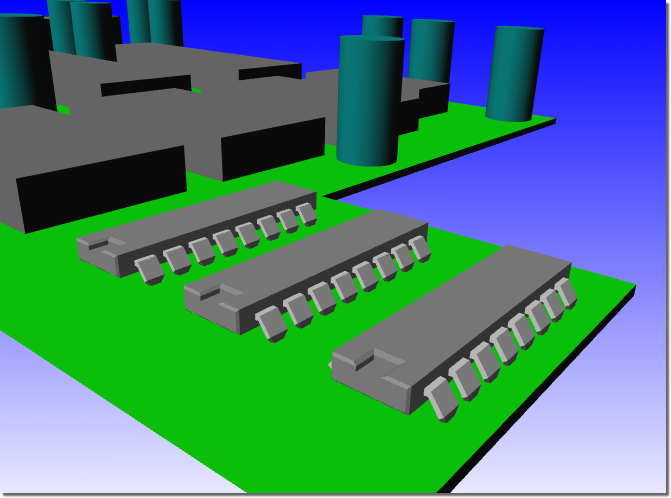

BAE Version 7.2: Layout / CAM Processor: WRL Export with External 3D Part Models
