Bartels AutoEngineer®

Bartels Autorouter®
Routing Examples

The following images shows some examples of PCB designs which were automatically routed with the Bartels Autorouter®.

Bartels Autorouter Application Example - Medium Size Conventional Board

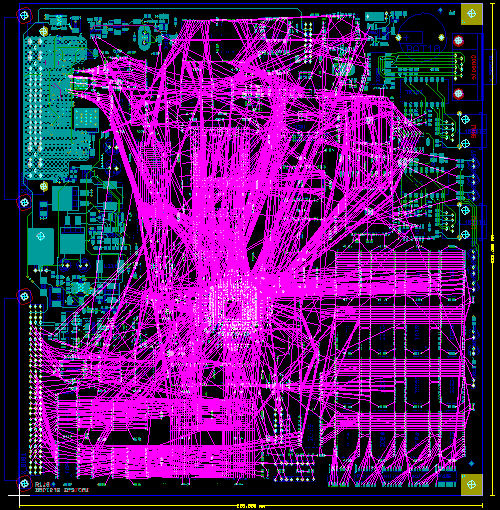

Figure 1a displays a medium size conventional printed circuit board with some manually pre-routed critical traces and power supply connections:

Figure 1a: Bartels Autorouter Application Example - Medium Size Conventional Board (unrouted)

Figure 1a: Bartels Autorouter Application Example - Medium Size Conventional Board (unrouted)

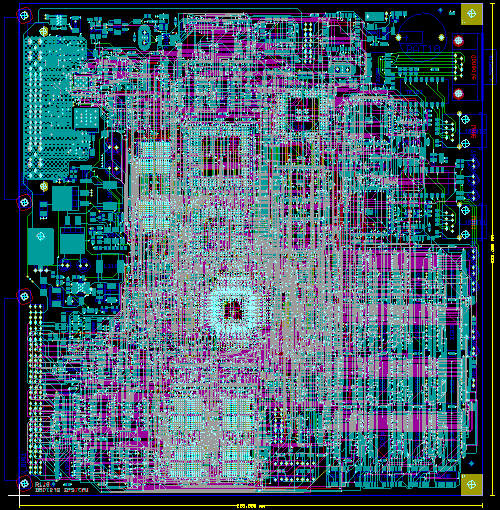

Figure 1b shows the automatically routed version of the PCB layout from figure 1a. The Autorouter used four signal layers and two power planes:

Figure 1b: Bartels Autorouter Application Example - Medium Size Conventional Board (automatically routed)

Figure 1b: Bartels Autorouter Application Example - Medium Size Conventional Board (automatically routed)
